Product Details:
Payment & Shipping Terms:
|
| Product: | RGB LED Pixels Light | IC: | 2811IC 1903IC |
|---|---|---|---|
| Item: | RGB LED Pixels Light | Controller: | T-1000S |
| Software: | LEDedit | Programmable: | Yes |
| Diamter: | 12MM | Voltage: | 5V |
| Waterproof: | Yes | Usage: | Christmas Decoration |
| Warranty: | 3 Years |
12mm 5V Colorful LED Pixels Light 2802/2806/2811/1903IC For Christmas Decoration
Specification
| Product Name | 12mm colorful led pixels |
| Product Size | 12m diameter |
| IC mode | WS2811 1903 2806 2808 2802 (pls tell us which IC you need before place order) |
| Voltage | DC 5V |
| Power | 0.3W |
| Working Currency | 20mA |
| Bean Angle | 160° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 500pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Fullcolor with IC. |
| Application | colorful led pixels light is widely used for advertising letters,led channel sign. Name board, Wire bar,wall,building and stage decoration. |
Pictures

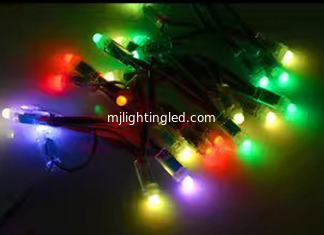

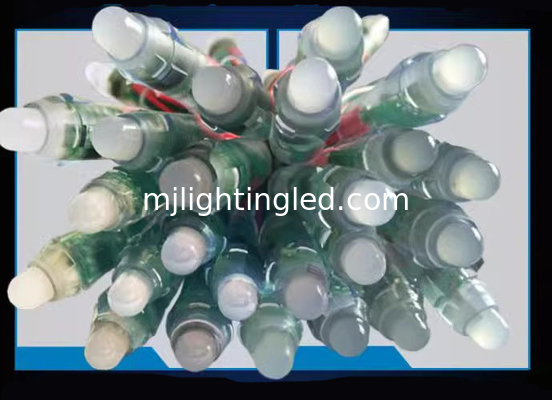

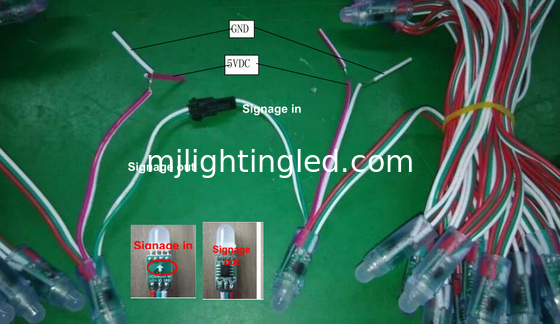

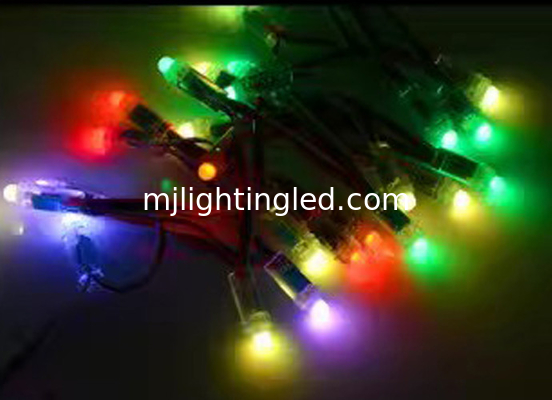

Pls check picture of fullcolor led pixel with 2811IC:
Fullcolor led controller is needed for Fullcolor LED pixel light.
Package

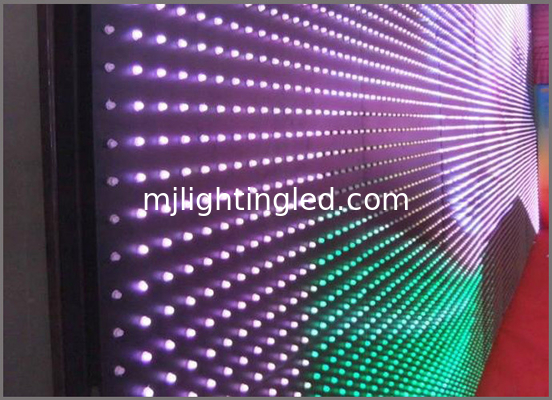

Application
RGB Fullcolor led pixel 1903IC Flexible string lights are widely used for lighting letters, led channel letters, decoration, rgb pxiels display, decoration,
building decorating...ect
Notice:
1.Pls confirm the dirver is DC5V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
