Product Details:
Payment & Shipping Terms:
|
| Color: | Red Green Blue Yellow White Pink | LED: | 5054SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.6W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Product: | 5054 3leds Modules | Application: | Led Letters |
1. Factory direct supply, competitive price for bulk order.
2. Strict aging test before packing, low defective rate.
3. Stable light brightness, consistent color bin for whole batch.
4. Support custom color, cable length and logo printing.
Specifications:
| Product Name | 5050 led modules |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 0.6W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 20pcs/roll |
| Emitting Color | Blue |
| Application | Led Letters Outdoor Signage Lamps |
Pictures:
1. Full injection molding IP65 waterproof, suitable for outdoor rainy environment.
2. SMD5054 high brightness red chip, uniform light output, low light decay.
3. Wide 120° beam angle, great for backlit sign letters.
4. Low heat generation, stable performance, long service life.
5. Pre-wired with extension cable, easy series connection.
6. Anti-aging PVC shell, resist UV & outdoor temperature change.
7. DC12V low voltage, safe for installation.

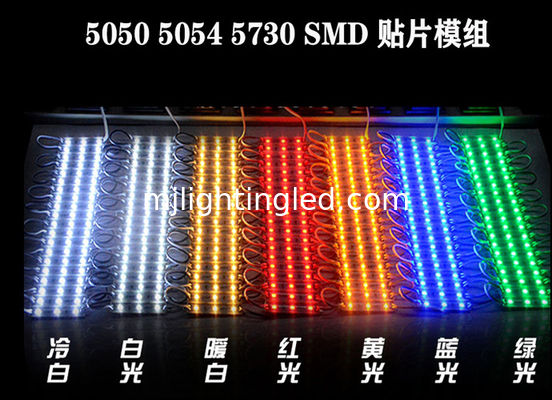

8. Multiple color available: Red, White, Blue, Green, Yellow.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .
Application pictures:
Q1: Is this module for outdoor use?
A: Yes, IP67 injection waterproof, works outdoor in rain. But wire joints need extra waterproof treatment.
Q2: Can I connect many modules in one line?
A: Yes, but total power cannot exceed the rated power of your 12V power supply. We suggest calculate total wattage first.
Q3: Can I get other colors besides red?
A: Sure, white, blue, green, yellow are all available.
