Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | Voltage: | DC5V |
|---|---|---|---|
| Power: | 0.12W | Waterproof: | IP68 |
| Products Diameter: | 9mm | Cable Length: | 8cm |
| Usage: | Exposed Led Light | Warranty: | 3 Years |
| Paypal: | T/T,Paypal,Western Union |
Specifications
| Product Name | Pixel led light |
| Product Size | 9m diameter |
| Hole size | 9mm diameter. |
| Voltage | DC 5V |
| Power | 0.12W |
| Working Currency | 20mA |
| Bean Angle | 180° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
| Application | Decoration lights, Shop banners, Advertising signs |

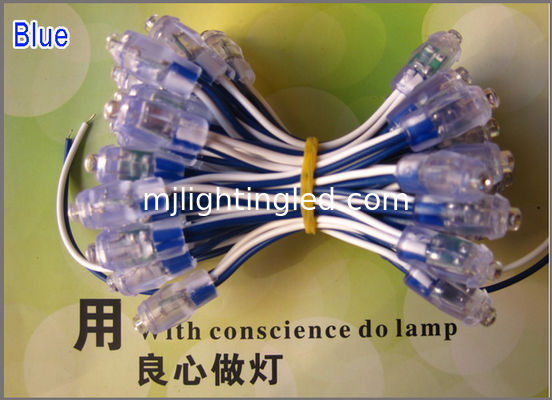

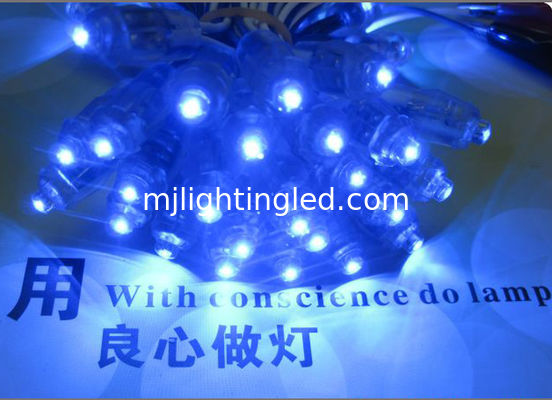

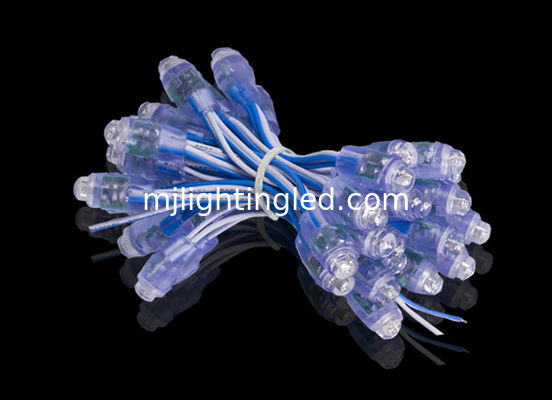

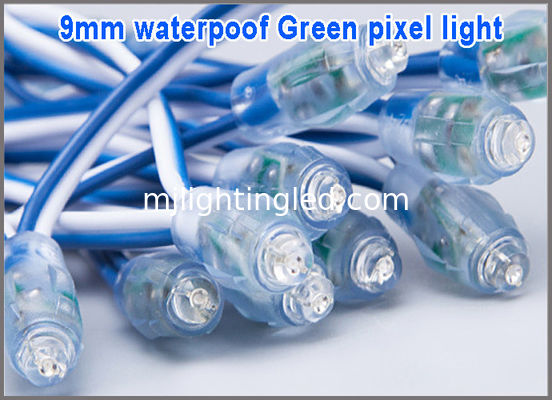

Pictures:
Feature:
1.Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.
2.Energy saving, environment friendly, Stable well, install conveniently, ect.
3. It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Series method connected, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.
6.Flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers
Will be burn out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .
Pls check the picture as below:
Package:

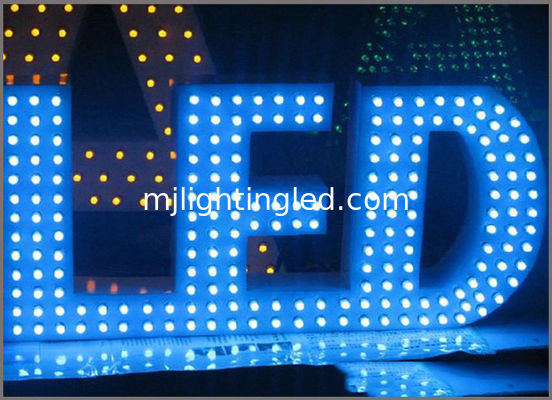

Application pictures:
1. Inspect lamps before installation. Discard damaged units.
2. Never connect directly to high voltage power.
3. Cut only on marked cutting points.
4. Seal wire joints with waterproof glue for outdoor use.
5. Do not pull wires hard or bend lamp beads sharply.
6. Test full lighting before sealing the advertising letter box.
7. Keep away from high heat sources.
8. Do not overload the power supply.
Q1: What is this 9mm LED pixel light used for?
A: It is mainly applied for advertising letter signs, channel letters, logo backlighting, store front signage and small outdoor illuminated signs.
Q2: Is this LED pixel waterproof? What is the IP rating?
A: Yes, it is IP68 waterproof. It can work normally outdoors under rainy weather, suitable for exterior advertising signs.
Q3: What voltage does this 9mm LED pixel use?
A: It adopts low voltage design, safe to use. Please confirm the working voltage before installation.
Q4: What color options are available?
A: We have green, red, blue, white, yellow and other colors for selection. Custom color is also available upon request.
