20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof Smd Led Modules

Good quality 30 mm LED Pixel for sales
Good quality 30 mm LED Pixel for sales
I'm Online Chat Now

20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof Smd Led Modules

China 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules supplier
20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules supplier 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules supplier 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules supplier 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules supplier 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules supplier

Large Image :  20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof Smd Led Modules

Product Details:

Place of Origin: China(mainland)
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-3x5730-7512-white

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: 20pcs/string 100pcs/bag,3000pcs/curton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Size: 75*12mm Color: White
Products: 5730 SMD LED Modules Voltage: DC12V
Wattage: 0.8W View Angle: 160dg
Waterproof: IP68 LED: Led 5730

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED Drivers RGB LED Controllers
20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules 20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules

20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules



20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V

Waterproof Smd Led Modules



Specifications:



Product Name 5730 3 LED modules
Product Size 75*12mm
Colors

 white

Voltage DC 12V
Power 0.8W
Working Currency 20mA
Bean Angle 160°
Material PVC
IP Rate IP68
Working temperature -25℃~+45℃
Warranty Three Years
Package 20pcs/string, 100pcs/pcakge, 1000pcs/cuton
Emitting Color  Red, Yellow,Blue,Green,White,Pink
Application The SMD LED Linear modules are widely used for all kinds of advertising letters,Illuminated channel letters,Name board, Wire bar,wall,building and stage decoration.

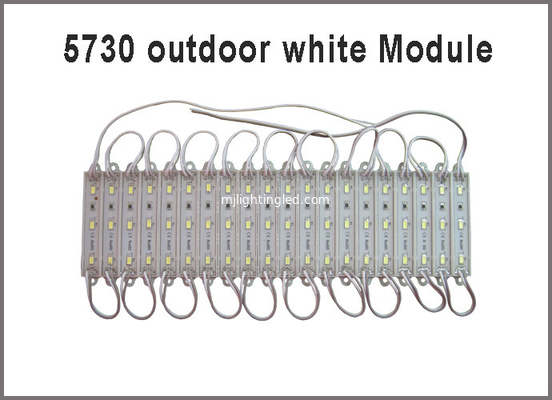

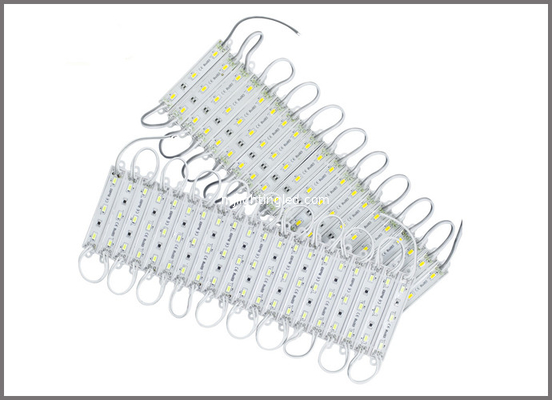

Pictures:



1.High quality import chip,Top-encapsulation ,high brightness,small lighting failure.
2.High light effective; No light decay after working 1000Hrs;

3.Better heat dissipation,low-power,long-life,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;

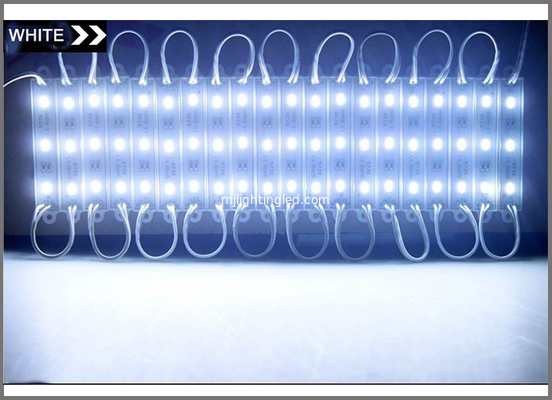

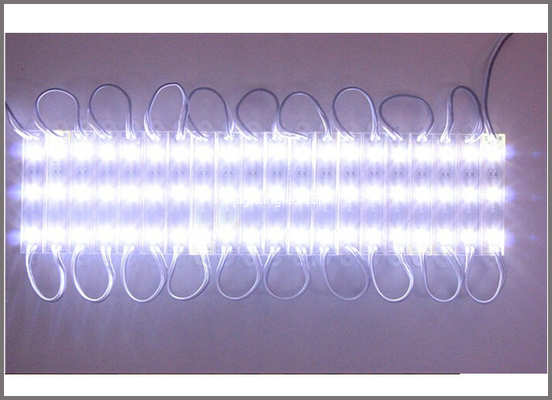

Pictures:

20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules

20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules









The product uses high quality LED light source,good luminous effect, Shell material made of imported PC material, fireproof, anti-UV, no easy become yellowing and other excellent performance.Wide range of application scenarios,Science and technology exhibition, lighting art,it can control by music and art with 3D effects,Stage stereo lighting,SD card controller playback and other effects.





Installation:



Tips:

—Silicon glue or 3M double tape directly fixing modules, but before installation.

Cleaning or polishing module surface.

—Can use screw mounting the modules on the board.

—Single led module can be cut.

LED Module installation

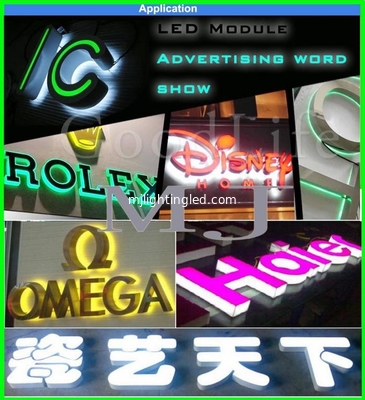

Application.



LED modules is widely used for lighting letters, lighting signboard, billboard,led channel letters, decoration, rgb pxiels display, decoration,building decorating...ect

led module application





Other products. (pls click the picture to open the details page of the products)

20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules

20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules



Notice:

1.Pls confirm the dirver is DC12V output.



2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.



3.Pls make sure of the positive and negative of the string, usually the negative is white.



4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.



Common faults and troubleshooting:

1.the whole sting can’t be light up.

Resolve way:Inspect whether the string and driver main wire polar connected right or not.



2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones



3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.





If you have more questions, Pls contact with me:
Contact : Alice Wang
Email:ledsignage_alice@163.com
Skype:alicewang2027

Wechat:ledsignage
Whatapp:008613534016771
Website:http://www.mjlightingled.com



20PCS/Lot Superbright 5730 3 LED Module Lighting For Sign DC12V Waterproof  Smd Led Modules
