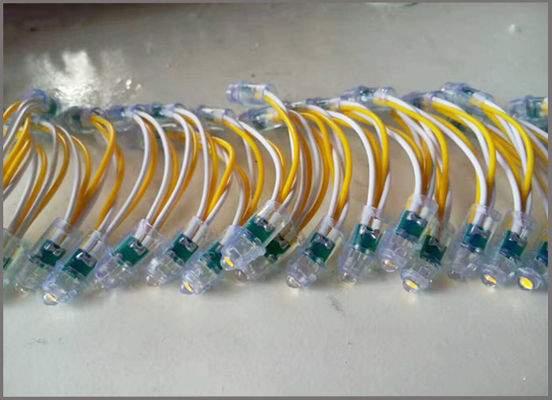

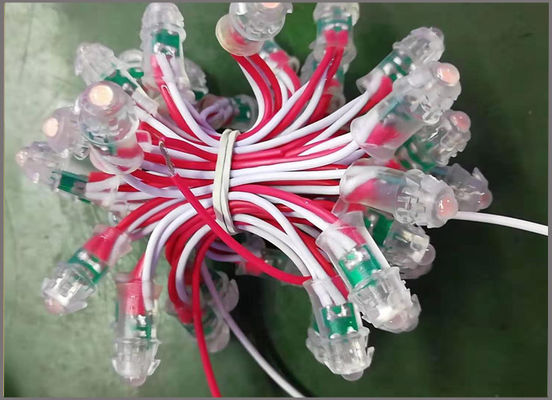

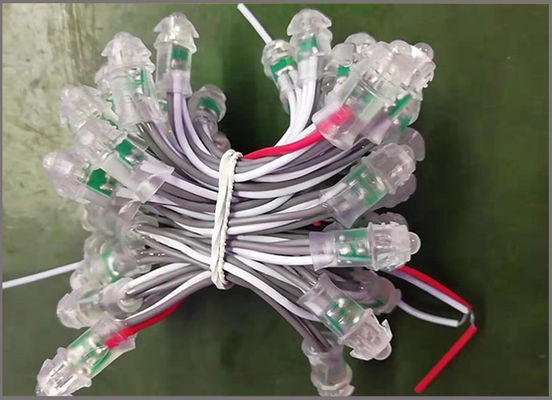

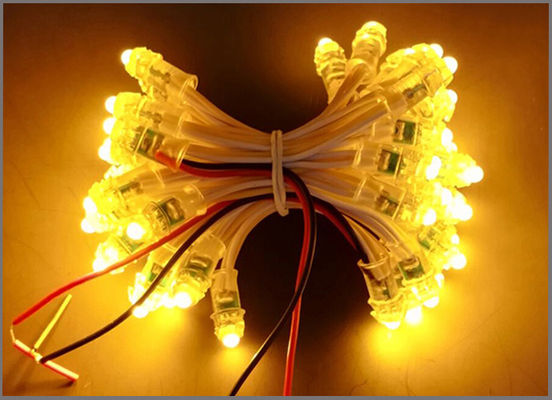

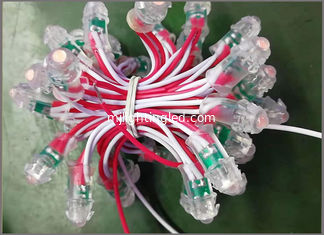

High Quality 5V/12V 9mm Led Exposed Pixel Light For Lighting Letter Signs Warranty 3 Years China Manufacture
1.Pixel Led light is produced with Taiwan chip. high brightness, good color purity, lower light dissipation and long lifespan.
2.Compared with traditional lights, LED has the advantage of energy saving, environment friendly, long lifespan, high stability, easier for installation, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.
6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.
The new process: Glue filling led pixel light. Quality is better than the old ones ( PVC injection)
PVC injection pixels is easier rusty after 2-3 years. But the new glue filling pixels are still good
enough , almost no rust.
50pcs/string; 1000pcs/bag; 5000pcs/curton
2.Advertising signage lighting
3.Lighting source for light box, lighting box,signaboards,logos,advertising boxes.
4.Advertisement bill board inside led lighting
5.Decorative lights for holiday, event, show, and exhibition
6.DIY lighting and home decoration use
7.Landscapes and stage decorations...
Instruction of installing
1.DC5V for single color pixel led lights and DC12V for single color ; please use the matched power supply
2.the size of the wirelines is at least 4 sq mm to keep the power low wastage
3.the single color pixel led lights : the white wireline is negative , conect to the negative of the driver ;
4.the single color pixel led lights : the colorful wireline is positive , conect to the positive of the driver ;
5.If any light doesn't work , please check the led lights and wirelines ,if the problem is not the wirelines , please change a new one to test .
6.RGB seven color pixel led lights: the yellow wireline is positive , connect to the positive of the power supply .The red , green and blue wirelines are negative ; connect to the controller ; please note that have to connect the matched port in the controller--R , G, B port .
7.RGB full color pixel led lights: the red wirelien is positive , connect to the positive of the power supply . The yellow wireline is Data , the green wirelin is clock ; the blue wireline is negative ; need connect these 3 wirelines into the matched port in the controller . Please note that also need connect the blue wireline to the negative of the power supply.
1.when connecting the wirelines to the power supply , please careful , if wrongly , the lights will not work .
2.please don't' connect the lights to AC220V , or the lights will be damaged .
3.The diameter of puching hole is at 9mm , 12mm , 16mm . Please punch the hole based of the diameter of lights . The pitch between lights is from 20-50mm , please design it according of the project . Generally ,more close , more bright and also more expensive the cost .
4.Installing lights : please clean the frame ahead before installing lights , For RGB full color pixel led lights , please exactly install as the diagram.
5.Connecting:Generally , the wastage of power is about 20% ; so not connect all the lights together only by one line wireline . For keeping every light enough power , have to use several wirelines according to the projects , we advise that every 300pcs lights share 1pcs wirelines ,and connect to the power supply directly .
1.We can shipping all over the world by DHL,Ups,FedEx and TNT.The packing is very safe and strong,if you have any special needs ,please let me know.
2.It will take around 3-5 working days to reach your hands.
3.We only guarantee delivery in time but we wouldn't control exprss delivery time.Our related sales person will be responsible to send the AWB(Tracking Number) for the delivered goods in the next workday.You can check the AWB on the website which we send to you.For the AWB you also can call to the local branch of the express company in your country .
4.Delivery :5 working days for sample order,7 working days for bulk order.
