Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | LED: | 5054SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.6W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Product: | 5054 3leds Modules | Application: | Advertising Banner Shop Sign |

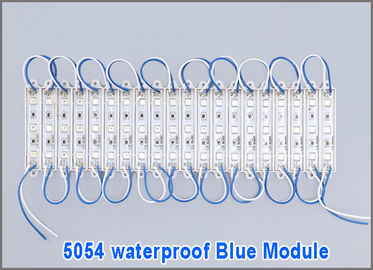

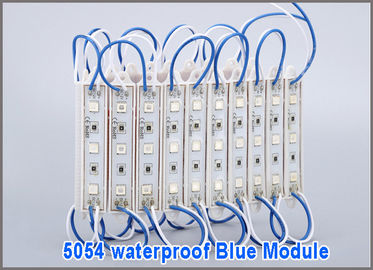

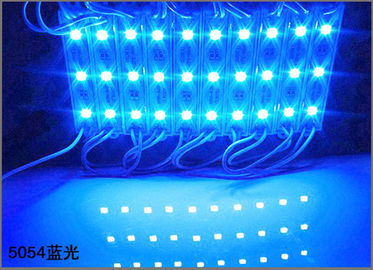

5054 LED module 3LED light 12V epoxy modules for advertising signs channel letters
Feature:
1. High brightness, uniform light output, low light decay.
2. Low power consumption, energy saving.
3. IP67 waterproof design, suitable for indoor & outdoor signage.
4. SMD chips, stable performance and long service life.
5. Easy installation with 3M adhesive tape on back.
Specifications:
| Product Name | 5054 led module light |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 0.6W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 20pcs/roll |
| Emitting Color | Blue |
| Application | Advertising Banner Shop Sign, LED Channel letters,LED Billboard, building and stage decoration. |
Pictures:
Installation Notes
1. Please cut off the power before installation.
2. This module works on DC12V/24V. Do NOT connect directly to AC 220V, otherwise the LEDs will burn out.
3. Match the correct power supply, calculate total power and reserve 20% extra load for driver.
4. Clean the mounting surface before sticking the modules to ensure strong adhesion of 3M tape.
5. For outdoor use, seal wire joints with waterproof glue to prevent water ingress.
6. Do not bend or pull the connecting wires violently.
Application pictures:
Advertising Banner Shop Sign, LED Channel letters,LED Billboard, building and stage decoration.
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.
Building exhibition hall together with customers and agents.
Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.
Support customize to help dealers and agents satisfy their customers well.
Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.
Support professional technical service on pre-sale,in-sale and after-sale.
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
Q1: How to install the modules?
A: There is 3M tape on the back. Clean surface, peel tape and stick on flat panel, then wire in parallel.
Q2: Can I cut or separate the modules freely?
A: Each module is independent. You can cut between modules, don’t cut the single module itself.
Q3: What’s the lifetime of these LED modules?
A: Up to 50,000 hours under normal working condition.
Q4: Do you accept customized order?
A: Yes, we support custom color, power, PCB size and logo printing.
CE certificate
