Product Details:
Payment & Shipping Terms:
|
| Diameter: | 30mm | Color: | RGB LED Pixel |
|---|---|---|---|
| Products: | 30 Mm Led Point Light | Voltage: | DC12V |
| Wattage: | 0.72W | View Angle: | 120dg |
| Waterproof: | IP68 | IC: | WS2811 |
| Size: | 30mm * 29mm |

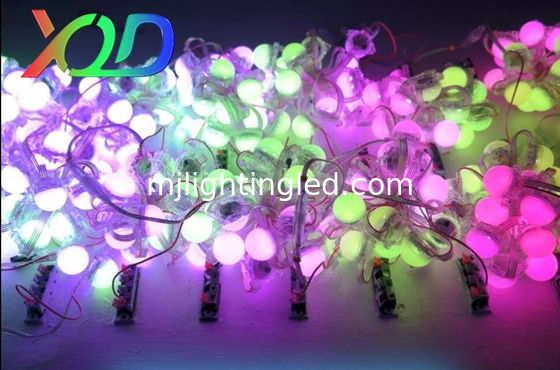

30 mm led point light DC12V WS2811 pixel light IP68 made in China
Specifications:
| Product Name | 30mm led point light |
| Product Size | 30m diameter |
| IC Mode | WS2811 |
| Voltage | DC 12V |
| Power | 0.72W |
| Working Currency | 20mA |
| Bean Angle | 120° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -25℃～+45℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
| Application | This 5V LED string light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |
Pictures:
1.View angle:90-180degree
2.Energy efficient,major reduction in power costs
3.Easily installation and maintenance free
4.High visual impact and excellent brightness
Features:
1.Perfect optical design,large illumination angle, high brightness, good light efficiency and more energy saving
2.The product has passed the rigorous test -80-100 °C extreme test, the product quality is stable and reliable
3. Patented waterproof design, wide application range, can be directly mounted on the building surface
4. Used in point light source screen, building quantification, ancient building lighting place
The product uses high quality LED light source,good luminous effect, Shell material made of imported PC material, fireproof, anti-UV, no easy become yellowing and other excellent performance.Wide range of application scenarios,Science and technology exhibition, lighting art,it can control by music and art with 3D effects,Stage stereo lighting,SD card controller playback and other effects.
Application.
30mm 2811 LED Pixel light is widely used for lighting letters, lighting signboard, billboard,led channel letters, decoration, rgb pxiels display, decoration,building decorating,LED pixel christmas lights...ect
Notice:
1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
