Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | Voltage: | DC5V |
|---|---|---|---|
| Power: | 0.12W | Waterproof: | IP68 |
| Products Diameter: | 12mm | Cable Length: | 8cm |
| Usage: | LED Dot Lights | Warranty: | 3 Years |
| Paypal: | T/T,Paypal,Western Union |
DC5V 12mm bulb LED Letters Blue LED pixel string signage lighting led channel letters
Specifications:
Product: DC5V LED lighting letters
Size:12mm
Voltage:DC5V
Power:0.12W
Warranty: 3 years
Package:50pcs/string, 1000pcs/pcakge, 6000pcs/cuton
Application :This led pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.

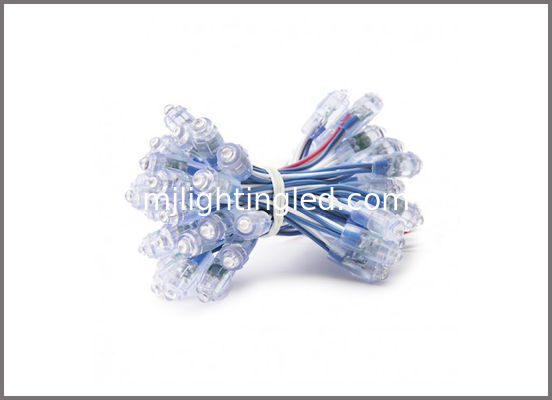

Pictures:
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers
Will be burn out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .
Pls check the picture as below:Notes:
50pcs/string, all the pixels are connected in parallel,When connecting them with wire,pls confirm every
string connect with the main wire,Do not connect all the strings in series. And all the wires connect with pixels and power can be over 5m, and the wire must be must be 2.5 mm2 at least .
Package:
50pcs/string, 1000pcs/bag, 5000pcs/curton.

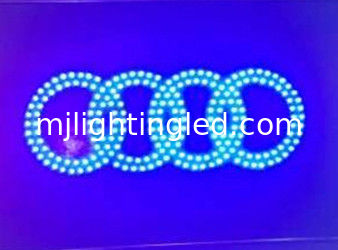

Application pictures:
LED pixel light are also customized. Pls tell me what you need, and we can design that for you. But make sure , the deliver time maybe longer.
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
