9mm DC5V Waterproof IP68 Single Color Led Pixel Light String

9mm DC5V waterproof IP68 single color led pixel light string

Specification

Products: led pixel light

Size:9mm

Voltage:DC5V

Power:0.12W

IP Rate:IP68

Warranty: 3 years

Package:50pcs/string, 1000pcs/pcakge, 6000pcs/cuton

Application:advertising letters,Name board, Wire bar,wall,building and stage decoration.

Pictures

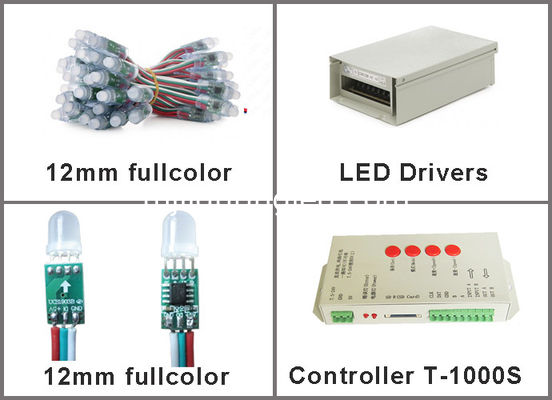

Pls check picture of fullcolor led pixel with 1903IC:

Feature:

1.The led module is made from Taiwan chip. Come out with high lumen, good color purity.

2.Energy saving, environmental friendly, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Series connected, If one is down, Just need to exchange the break one.

Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.

For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over

Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than

160/0.1=1600pcs.

Pls check the picture as below:

Fullcolor led controller is needed for Fullcolor LED pixel light.

Package

Application

RGB Fullcolor led pixel 1903IC Flexible string lights are widely used for lighting letters, led channel letters, decoration, rgb pxiels display, decoration,

building decorating...ect

software : lededit 2013.

Notice:

1.Pls confirm the dirver is DC5V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.

4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.

Common faults and troubleshooting:

1.the whole sting can’t be light up.

Resolve way:Inspect whether the string and driver main wire polar connected right or not.

2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones

3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
