Large Image :  12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs

Product Details:

Place of Origin: China(mainland)
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-12mm-5FC

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Packaging Details: 1000pcs/bag
Delivery Time: 2-5days after payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100000pcs/day
Detailed Product Description
Product: Module Of Fullcolor Points Chain IC: 1903IC
Item: Flexible String Pixels Lights Controller: T-1000S
Software: LEDedit Programmable: Yes
Diamter: 12MM Voltage: 5V
Waterproof: Yes Usage: Advertising Signs
Warranty: 3 Years

                                    Main products Hot seller
RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led 12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs



Specification



Product Name module of Fullcolor points chain
Product Size 12m diameter
IC mode 1903/6803/WS2801/WS2802 (pls tell us which IC you need before place order)
Voltage DC 5V
Power 0.3W
Working Currency 20mA
Bean Angle 180°
Material PVC
IP Rate IP68
Working temperature -45℃~+70℃
Warranty Three Years
Package 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton
Emitting Color Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor.
Application This led pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.





Pictures

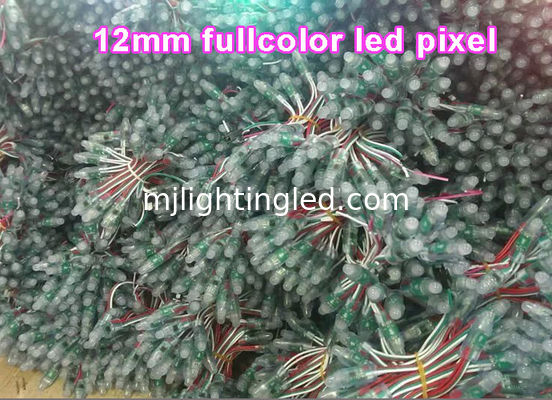

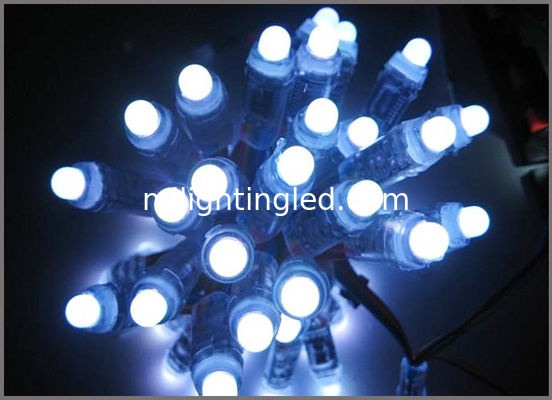

Pls check picture of fullcolor led pixel with 1903IC:

5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion



5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion

5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion



Feature:



1.Produce with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.



2.Compared with traditional lights, LED light has the advantage of energy saving, environment friendly, long lifespan, Stable well, install conveniently, ect.



3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.



4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.



5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.



6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.







Driver select and installation:



1.Total load power of the driver should not be over than 80% of the driver rated power.

For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over

Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than

160/0.1=1600pcs.



2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers

Will be burn out.



3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion





Fullcolor led controller is needed for Fullcolor LED pixel light.

5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion



Package

5V 12mm RGB LED bedrahtet programmable led signage outdoor colorchange advertising signs building decoraion





Application



RGB Fullcolor led pixel 1903IC Flexible string lights are widely used for lighting letters, led channel letters, decoration, rgb pxiels display, decoration,

building decorating...ect



software : lededit 2013.

12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs





12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs

Notice:

1.Pls confirm the dirver is DC5V output.



2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.



3.Pls make sure of the positive and negative of the string, usually the negative is white.



4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.



Common faults and troubleshooting:

1.the whole sting can’t be light up.

Resolve way:Inspect whether the string and driver main wire polar connected right or not.



2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones



3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.



Other products:

We also provide led modules, led pixel light.... They are mainly used for advertising lightings.

12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signsLED Strip light

12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs


12MM 5V module of Fullcolor points chain 1903IC flexible string T-1000S controllers programmable advertising signs
