Product Details:
Payment & Shipping Terms:
|
| Color: | White | Voltage: | DC5V |
|---|---|---|---|
| Power: | 0.12W | Waterproof: | IP68 |
| Products Diameter: | 9mm | Cable Length: | 8cm |
| Usage: | Advertising Signage | Warranty: | 3 Years |
| Paypal: | T/T,Paypal,Western Union | Product: | Led Lamparas Pixel |
✅ We are a professional LED lighting factory specializing in advertising sign lighting for many years.
✅ IP68 full waterproof design, specially developed for outdoor channel letter signs, works stably in rainy and humid environments.
✅ Compact 9mm small size, easy to hide inside letter shells without affecting the appearance of advertising signs.
✅ High-brightness LED chips with low power consumption and long service life.
✅ The light string can be cut at marked cutting points, flexible to match different sizes of advertising letters.
| Product Name | 9mm LED lamparas pixel light |
| Product Size | 9m diameter |
| Hole size | 9mm diameter. |
| Voltage | DC 5V |
| Power | 0.12W |
| Working Currency | 20mA |
| Bean Angle | 180° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
| Application | Letters Sign ,advertising letters,Name board, Wire bar,wall,building and decoration. |

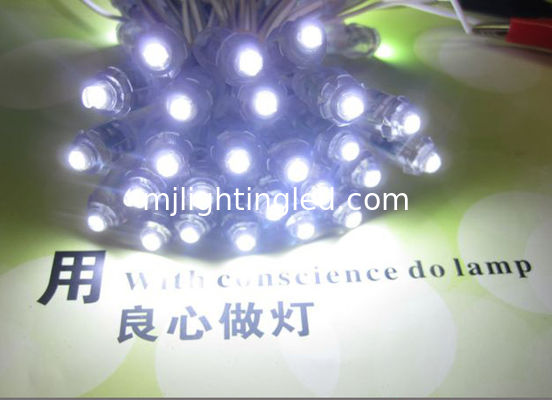

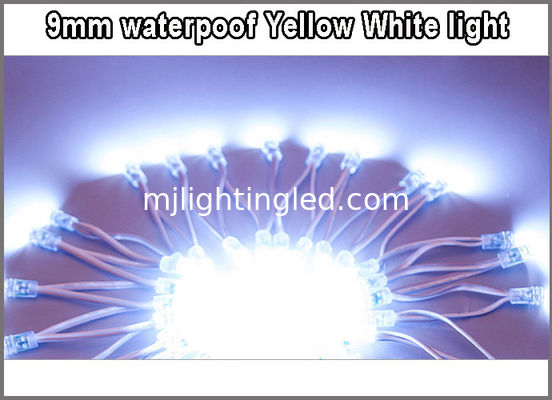

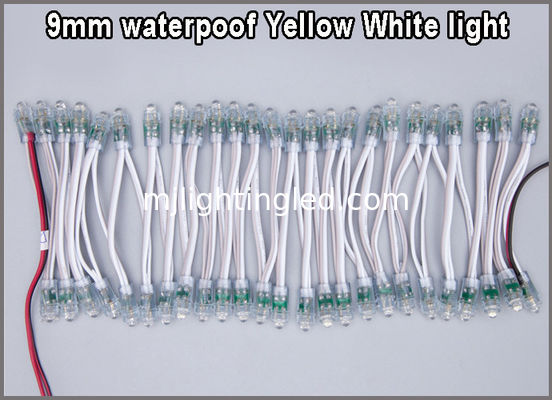

Pictures
Feature
1. IP68 Waterproof for outdoor advertising signs
2. 9mm small size, perfect for channel letter backlight
3. Low voltage, safe & energy saving
4. High brightness, consistent lighting
5. Cuttable at designated points, flexible layout
6. Easy wiring, fast installation
7. Multi-color optional, CE RoHS approved
8. Factory wholesale for signage projects

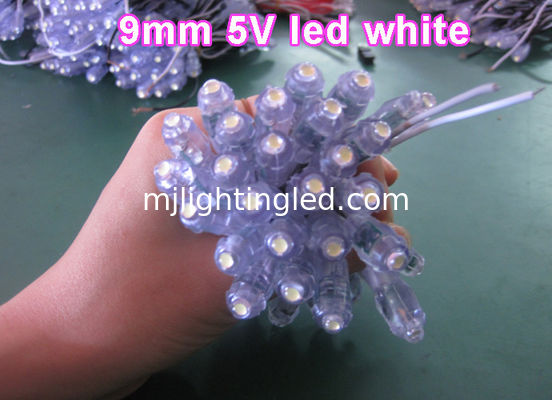

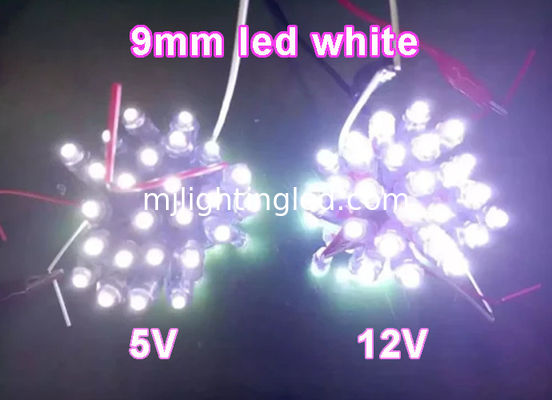

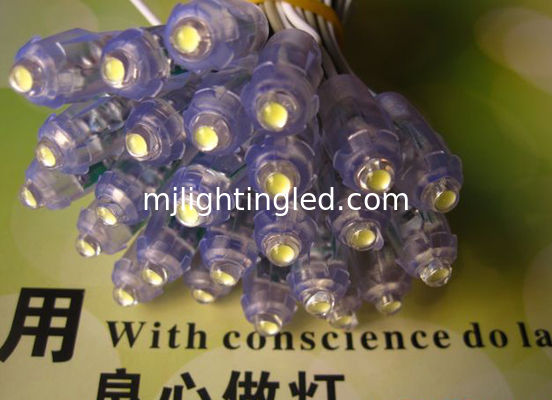

Pls check the picture as below:
1. Check all LED pixels for damage before installation. Do not use any lamps with broken shells or exposed wires.
2. This LED pixel works at low voltage. Do not connect to high-voltage mains directly, otherwise the lights will burn out immediately.
3. Cut the string only at the marked cutting points. Cutting at other positions will damage the circuit and make the pixels non-functional.
4. Keep the wiring joints sealed well after connection. Even though the lamp body is IP68 waterproof, the splice joints are not waterproof without sealing.
5. Avoid pulling or stretching the wires violently during installation, which may cause internal wire breakage and light failure.
6. Do not bend the lamp bead body sharply. Sharp bending will damage the internal LED chip.
Package
Application pictures
Notice:
1.Pls confirm the dirver is DC5V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
If you have more questions, Pls contact with me:
