HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller

China HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller supplier

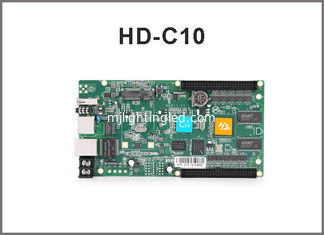

Large Image :  HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller

Product Details:

Place of Origin: HD-C10 rgb LED Control Card
Brand Name: HD
Model Number: HD-C10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 3-5days
Payment Terms: Paypal,, T/T, Western Union
Detailed Product Description
Voltage: 5VDC Product: HD-C10 Rgb LED Control Card
Communication:: USB+RS232

                                   Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller




HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller



Specification

Product RGB Control card
Mode HD-C10
Software HDPlayer
Application Control led display RGB video display
Voltage 5VDC
Communication USB+RS232
Receving card R500/r501
Control Range

Fullcolor :1024*96,304*320

System Win2000,NT,XP,Vistar,Win7



Function simple introduce:

1.C10 can be used as a asynchrous card,it can controller RGB full color led screen Individually,same to HD-C1;

2. C10 can be used as a sending card,support receiving card R500 OR R501 casecade to controller big led screen;



Features:

1.Support Indoor & outdoor full-color & single/dual color module &Virtual module

2.Support Video,Animation, Graphics,Images,Text, etc.

3.Support 0~65536 gray level

4.U-disk to infinitely expand the memory storage , U-disk plug-and-play

5.Support Standard two-track stereo output

6.No need set IP, HD-C10 could be identified by controller ID automatically

7.Support network cluster management.



Parameter with picture



HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controllerHD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller

Introduction:

HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller



  1. USB conection.
  2. Internet in:100MB, When working,Orange color light up, green light flickering.
  3. Internet out: When working, D7 light up, D8 flickering.
  4. Power supply connect with 5V.
  5. Voice output.
  6. Power light: D2 green light up, D1 green flickering.
  7. MINIPCIE, connect with 3G or wifi module.
  8. 50pin connect with HUB board.
  9. When working D7 flickering
  10. SIM card. 3G/3G SIM card.

50pin introduction:

HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller





Dimension:



HD-C10 rgb control system/ Asynchronous cascading controller/USB port full color controller
