Product Details:

Place of Origin: China
Brand Name: Huidu
Certification: CE ROHS
Model Number: HD-E62

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Anti-static Package
Delivery Time: 2-5days after getting payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 5000pcs/day
Detailed Product Description
Product: HD-E62 LED Sign Controller Communication: RJ45+USB
Pixels: 1024W*64H (single Color) Voltage: DC5V
Port: 2xhub08,4xhub12 Application: Controller For Display Screen Moving Sign

                                  Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led LED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving sign
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller




LED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving sign



Specification:

Mode HD-E62 LED sign controller
Control color Single color/Double color/RGB
Pixels 64H*1024W,32H*2048W (single color); 64H*512W,16H*2048W(Double color); 32H*672W,16h*1024W(RGB)
Scan mode Static, 1/2,1/3,1/4,1/5,1/6,1/8,1/16 ect.
Communication Network RJ45 +USB
Voltage 5V (4.2~5.5V)
Power <0.5W
Working temperature -40~75 degree
Size 57H*90W
Flash Capacity 2MB (can extent to 8MB)
Display color Double color support Red Green and Yellow.
RGB RGB Color can show Red Green Blue Yellow Purple,Syan and White(7 colors)
Program Qty. 200 programs, support button and remote control
Area Qty. 8 areas,separated areas, separated patterns and separated border
Display showing Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc
Program mode Playing by Sequence or by Remoter or by Button
Display effects

1.Support all languages(Software:HD2016) 2.Support 7 color effects and 64 colors Gray level (HD-E62/E63/E64/E65/E66)

3. Border functions of Program border, area border and Custom design border.

4.Add Countdown /Count up, Button Countdown / Count up

5.Add Text Rotation of 90°,180°,270° for display Text function of Hollow,Stroke etc

6.Add payment collection function

7.Updated program by U-disk

8. More than 200 types showing effects

9.Support Second develop SDK

10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function

1. Used in Parking place,Scoring device,Calculate by piece.

2. From Minimum to Maximum, from Maximum to Minimum

Expand function Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs
Brightness Control Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation
Automatic close /open display Support close /open display by time automatically
Application This control card is widely used for all the billboard,shops,vehicle message showing, it can be used in local area network(LAN) for group management
Advantage RJ45 network do not need wire, low cost ,cost-effective. easy software operation,good showing effect and support 98% of all the single and double display screens.

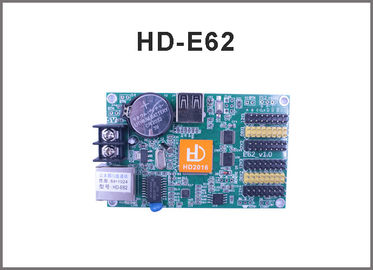

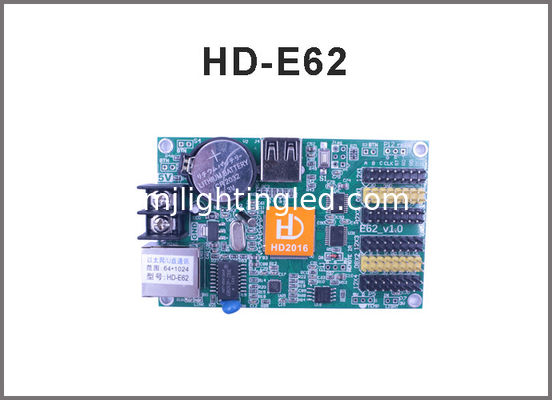

Pictures:

LED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving signLED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving signLED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving signLED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving signLED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving signLED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving sign





Dimension pictures:

LED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving sign



HUB port introducton:

LED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving sign



Control System:



led Control System HD2014 is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.



LED sign controller HD-E62(old version HD-E40) Ethernet & USB for display screen moving sign



Other Huidu Control card for single/double color:


Communication Mode Pixels (Max) Pixels(W) Pixel(H) Port
USB HD-U6A 320*32 320 32 2 HUB12
USB HD-U6B 1024*48 1024 48 3HUB12
USB HD-U60 512*32 1024 32 1HUB08,2HUB12
USB HD-U61 1024*32 1024 32 1HUB08,2HUB12
USB HD-U62 512*64 1536 64 2HUB08,4HUB12
USB HD-U63 512*128 2048 128 4HUB08,8HUB1
USB HD-U64 512*256 3072 256 1 PIN50
RS232 HD-S61 1024*32 1024 32 1HUB08,2HUB12
RS232 HD-S62 1024*64 1536 64 2HUB08,4HUB12
RS232 HD-S63 1024*128 2048 128 4HUB08,8HUB12
RS232 HD-S64 1024*256 4096 256 1 PIN50
RS232 HD-S65 1024*512 4096 512 2 PIN50
Network HD-E61 1024*32 1024 32 1HUB08,2HUB12
Network HD-E62 1024*64 2048 64 2HUB08,4HUB12
Network HD-E63 1024*128 3072 128 4HUB08,8HUB12
Network HD-E64 1024*256 4096 256 1 PIN50
Network HD-E65 1024*512 4096 512 2 PIN50
Network HD-E66 2048*512 8192 512 2 PIN50
Wifi HD-W61 1024*32 1024 32 1HUB08,2HUB12
Wifi HD-W62 1024*64 2048 64 2HUB08,4HUB12
Wifi HD-W63 1024*128 3072 128 4HUB08,8HUB12
Wifi HD-W64 1024*256 4096 256 1 PIN50
