Product Details:
Payment & Shipping Terms:
|
| Product: | HD-S62 LED Controller Card | Communication: | RS232+USB |
|---|---|---|---|
| Pixels: | 1024*64 (single Color) | Voltage: | DC5V |
| Port: | 2*HUB08 4*HUB12 | Application: | P10 Led Screen |
Huidu Led control card HD-Q41 HD-S62 LED display system USB+SERIAL port 1024*64 pixel for p10 led screen
Specification:
| Mode | HD-Q41 HD-S62 controller card |
| Control color | Single color/Double color/RGB |
| Pixels |
1024W*64H 1536W*32H (single color); 512W*64H 1536W*16H(Double color); 672W*32H 768W*16H (RGB) |
| Scan mode | Static, 1/2,1/3,1/4,1/5,1/6,1/8,1/16 ect. |
| Communication | RS232+USB |
| Voltage | 5V (4.2~5.5V) |
| Power | <0.5W |
| Working temperature | -40~75 degree |
| Size | 55H*85W |
| Flash Capacity | 2MB (can extent to 8MB) |
| Display color | Double color support Red Green and Yellow. |
| RGB | RGB Color can show Red Green Blue Yellow Purple,Syan and White(7 colors) |
| Program Qty. | 200 programs, support button and remote control |
| Area Qty. | 8 areas,separated areas, separated patterns and separated border |
| Display showing | Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc |
| Program mode | Playing by Sequence or by Remoter or by Button |
| Display effects |
1.Support all languages(Software:HD2016) 2.Support 7 color effects and 64 colors Gray level (HD-E62/E63/E64/E65/E66) 3. Border functions of Program border, area border and Custom design border. 4.Add Countdown /Count up, Button Countdown / Count up 5.Add Text Rotation of 90°,180°,270° for display Text function of Hollow,Stroke etc 6.Add payment collection function 7.Updated program by U-disk 8. More than 200 types showing effects 9.Support Second develop SDK 10.More high brightness, more moving speed ,more refresh |
| Time / Clock /Count Function |
1. Used in Parking place,Scoring device,Calculate by piece. 2. From Minimum to Maximum, from Maximum to Minimum |
| Expand function | Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs |
| Brightness Control | Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation |
| Automatic close /open display | Support close /open display by time automatically |
| Application | This control card is widely used for all the billboard,shops,vehicle message showing, it can be used in local area network(LAN) for group management |
| Advantage | RS232 +USB communication do not need wire, low cost ,cost-effective. easy software operation,good showing effect and support 98% of all the single and double display screens. |

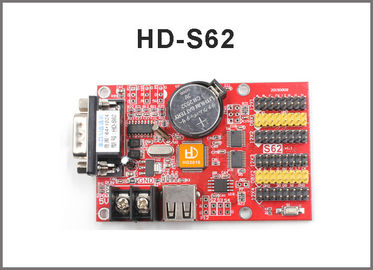

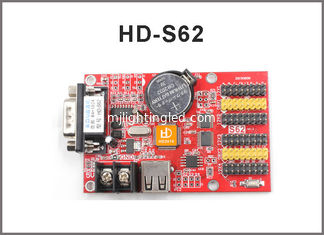

Pictures:
Dimension pictures:
