Product Details:
Payment & Shipping Terms:
|
| Color: | RED | LED: | 5050SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Product: | 5050 SMD LED Module |
Specifications:

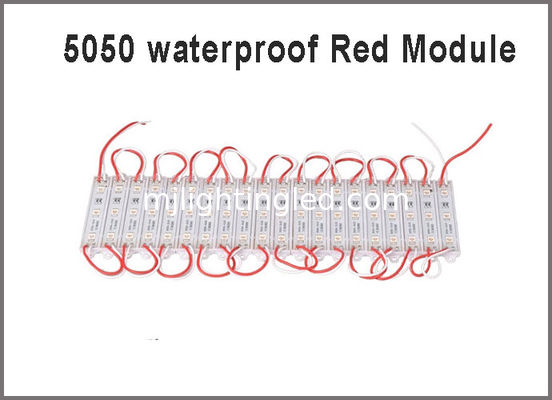

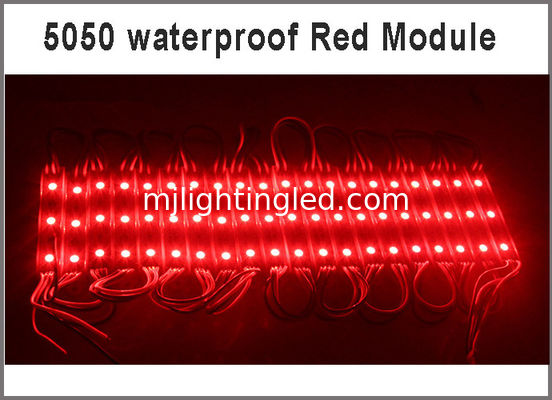

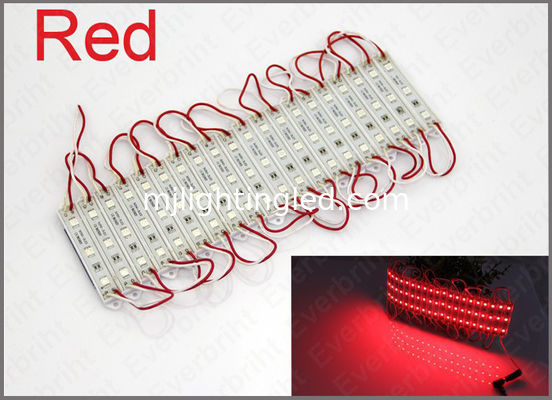

Pictures:
Feature:
1. Easy installation with 3M adhesive tape on back.
2. DC low voltage power supply, safe for operation.
3. Flexible parallel connection, convenient for custom sign size.
4. Good heat dissipation, reduce failure rate.

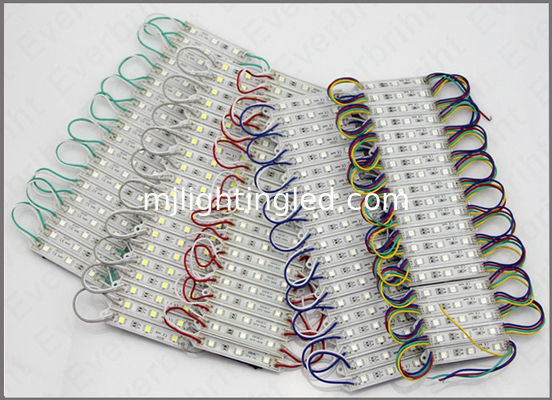

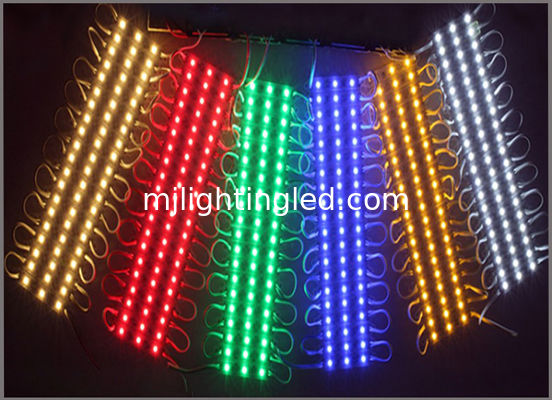

5. Multiple color options for different advertising signs.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

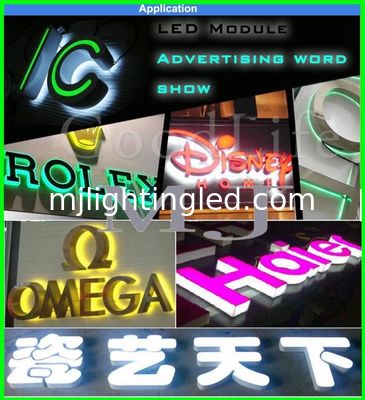

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
Notice:
1. Please cut off the power before installation.
2. Clean the mounting surface before sticking the modules to ensure strong adhesion of 3M tape.
3.Pls confirm the dirver is DC12V output.
4.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
5.Pls make sure of the positive and negative of the string, usually the negative is white.
