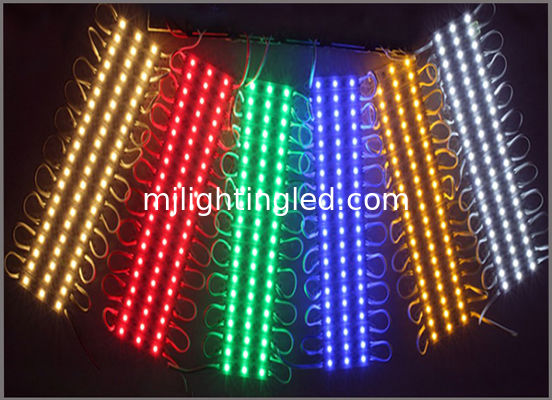

12V 5050 SMD Blue LED Module For Advertising Sign Board


Why Choose Us

✅ Reliable SMD LED chips, strict brightness and aging test before shipment.

✅ Stable quality, low failure rate for long-time signage projects.

✅ Waterproof PC lens, anti-yellowing for outdoor advertising use.

✅ Support custom color, power and logo printing.

✅ Fast lead time for bulk orders, flexible MOQ.

Feature

1. IP67 waterproof design, suitable for indoor & outdoor signage.

2. SMD chips, stable performance and long service life.

3. Easy installation with 3M adhesive tape on back.

4. DC low voltage power supply, safe for operation.

5. Flexible parallel connection, convenient for custom sign size.

Specifications:

· Product Name: SMD LED Module

· LED Chip: 5050

· Working Voltage: DC12V

· Power: 0.72W

· LED Quantity: 3 LEDs

· Luminous Flux: 60–120lm per module

· Color Temperature: Blue

· Certificate: CE ROHS

· Warranty: 3 years

· IP Rating: IP65 / IP67

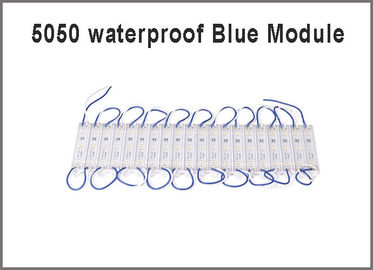

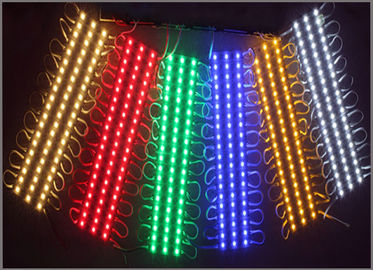

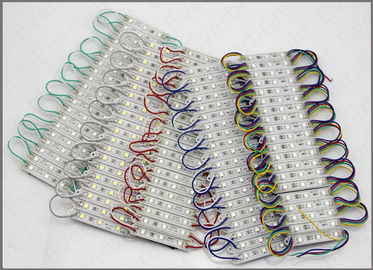

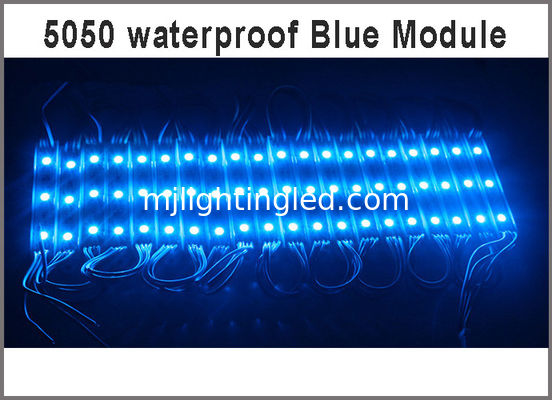

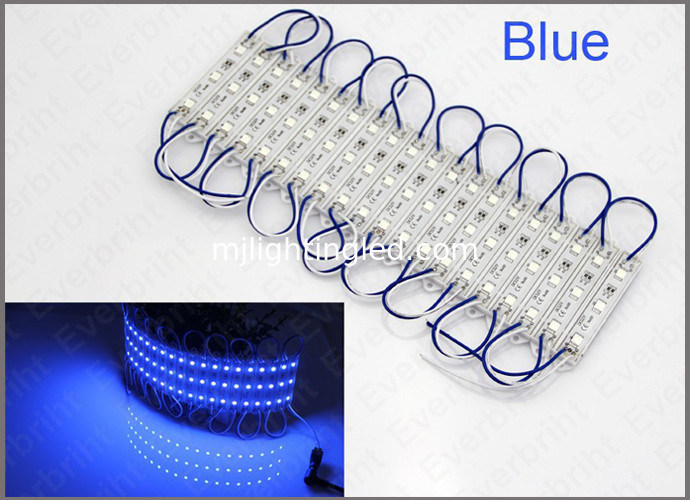

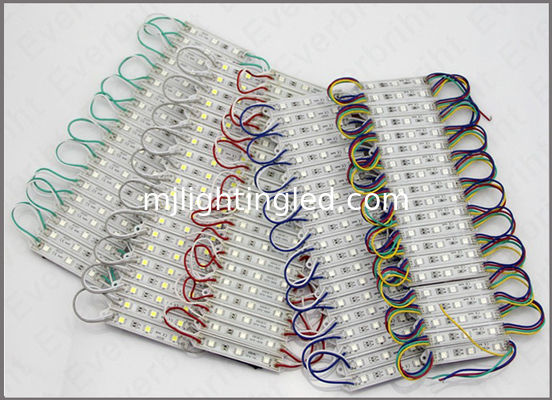

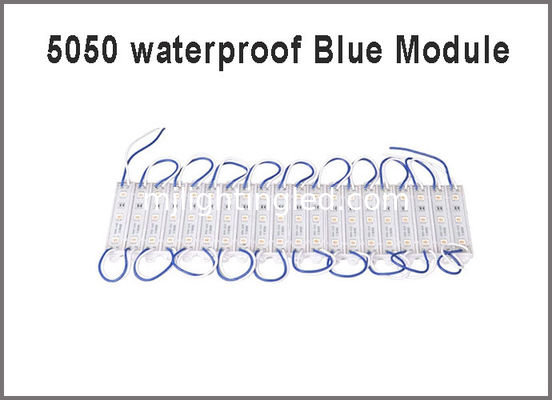

Pictures:


Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

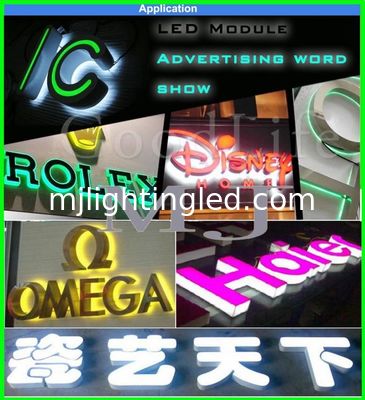

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.



Notice:

1. Please cut off the power before installation.

2. This module works on DC12V/24V. Do NOT connect directly to AC 220V, otherwise the LEDs will burn out.

3. Match the correct power supply, calculate total power and reserve 20% extra load for driver.

4. Clean the mounting surface before sticking the modules to ensure strong adhesion of 3M tape.

5. For outdoor use, seal wire joints with waterproof glue to prevent water ingress.
