LED RGB Modules 12V RGB Led Light For Advertisement Signage

LED RGB Modules 12V RGB led light for advertisement signage


Product Specifications

• Light Source: SMD5050 LED, 3 LEDs per module
• Working Voltage: DC12V Constant Voltage
• Power: 0.8W per piece
• Waterproof Grade: IP67, integrated injection molding
• Available Colors: RGB
• Lifespan: ≥50,000 hours
• Wiring: Red wire for Red color, Green wire for Green color,Blue wire for Blue color,grey wire for negative. R,G,B is positive

,Product Features

1. Integrated injection molded sealing structure, IP67 waterproof & dustproof, suitable for outdoor use

2. Convex lens optical design, strong light gathering effect, long irradiation distance and uniform brightness

3. High brightness SMD2835 chips, low light decay and long service life

4. Pre-drilled mounting holes, easy installation on acrylic channel letter and light box backboard

5. DC12V low voltage power supply, safe for advertising signage projects

6. Multiple color options, support bulk engineering orders

7. Impact resistant housing, moisture-proof, ideal for outdoor signs and truck side decorative lighting

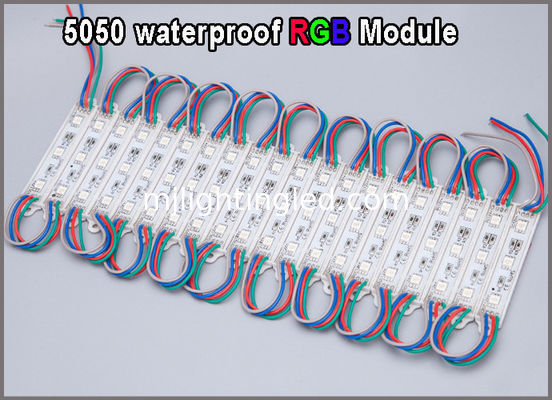

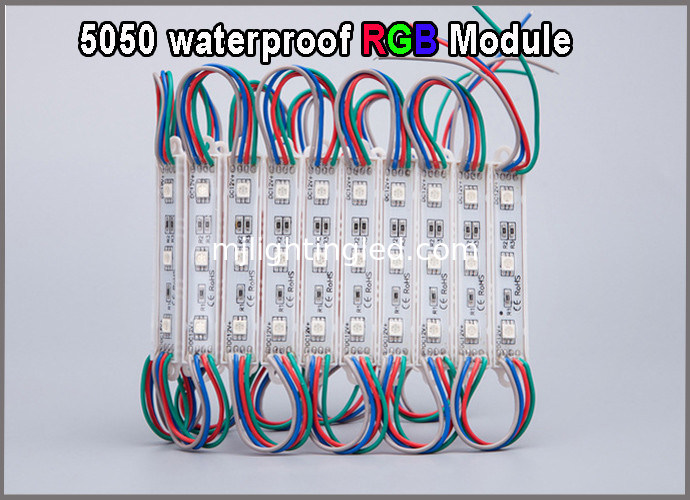

Pictures:




Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .



Application pictures:
Advertisement Signage, LED channel letters,Name board,  Park decoration.


 FAQ

Q1: Is this LED module waterproof?

A: Yes, IP67 injection molding waterproof, suitable for outdoor signage.

Q2: What voltage is required for this LED module?

A: DC12V low voltage, you need a matched 12V power supply.

Q3: Can I connect many modules in series?

A: Yes, please calculate the total power. Do not overload your power supply.
