Product Details:
Payment & Shipping Terms:
|
| Color: | RGB | LED: | 5050SMD LED |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Products: | 5050 3LEDs RGB LED Modules |
1. IP65/IP67 waterproof design, suitable for indoor & outdoor signage.
2. SMD chips, stable performance and long service life.
3. PC anti-UV lens, yellowing resistant.
4. Easy installation with 3M adhesive tape on back.
5. DC low voltage power supply, safe for operation.
6. Flexible parallel connection, convenient for custom sign size.
| Product Name | 5050 SMD LED modules |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 0.8W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 20pcs/roll |
| Emitting Color | RGB |
| Application | LED Advertising Board Backlight,Led Channel Letter, Banner Sign, Outdoor Signage, Decoration...ect |

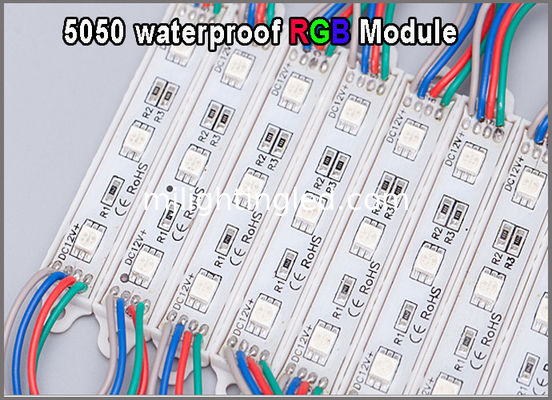

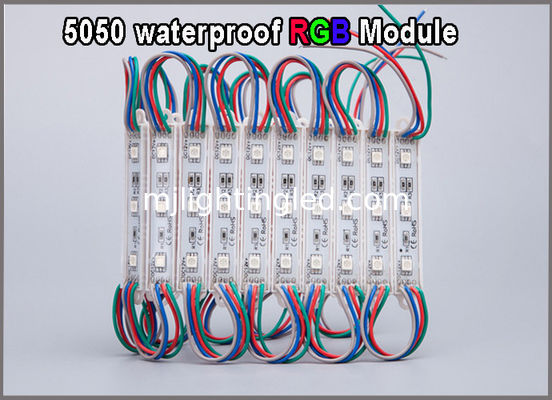

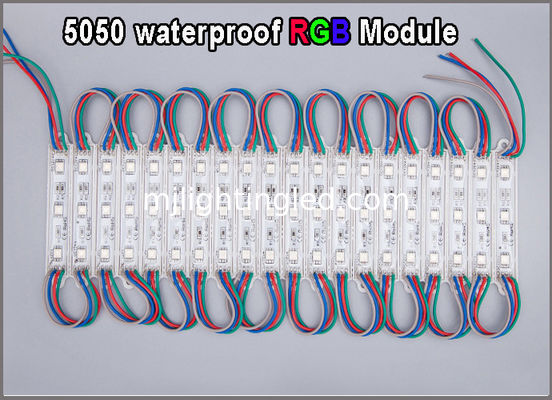

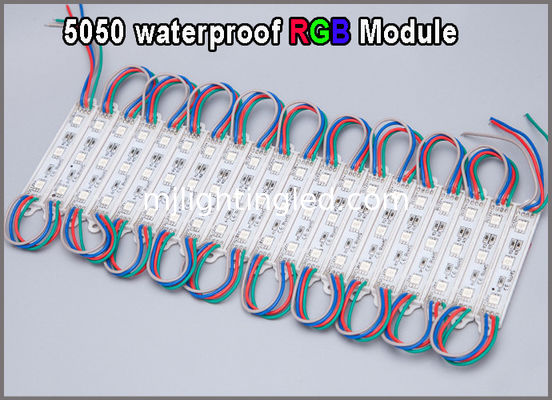

Pictures:
Feature:
1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.
2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.
6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

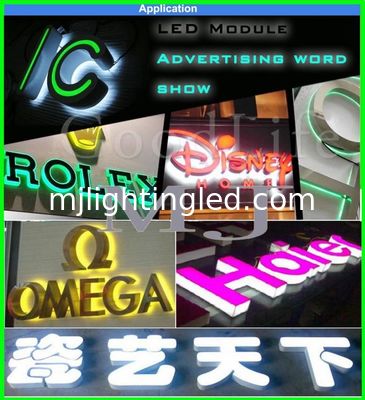

Application pictures:
LED Advertising Board Backlight,Led Channel Letter, Banner Sign, Outdoor Signage, Decoration...ect
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
1. Please cut off the power before installation.
2. This module works on DC12V/24V. Do NOT connect directly to AC 220V, otherwise the LEDs will burn out.
3. Match the correct power supply, calculate total power and reserve 20% extra load for driver.
4. Clean the mounting surface before sticking the modules to ensure strong adhesion of 3M tape.
CE certificate
