Product Details:
Payment & Shipping Terms:
|
| Product: | 5730 Led Injuction Module | Voltage: | DC12V |
|---|---|---|---|
| Power: | 1.2W | LED: | 5730 |
| Material: | ABS+Aluminum | Size: | 75*12*5mm |
| Waterproof: | IP65 | Payment: | T/T, Paypal, Western Union |
| Beam Angle: | 180dg |
1. Easy installation with 3M adhesive tape on back.
2. DC low voltage power supply, safe for operation.
3. Flexible parallel connection, convenient for custom sign size.
4. Good heat dissipation, reduce failure rate.
5. Multiple color options for different advertising signs.

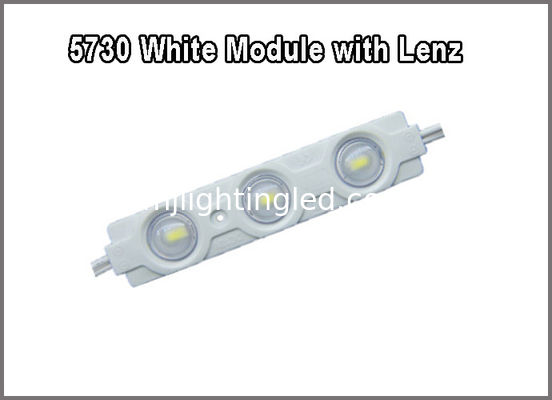

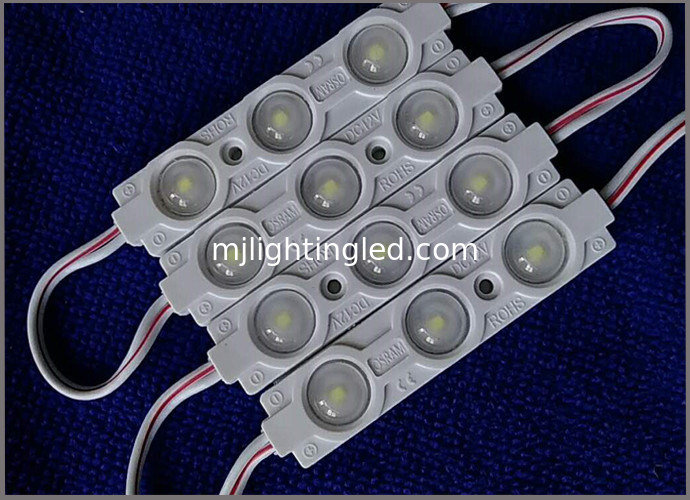

| Product Name | 5730 led module with lenz |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 1.2 W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 20pcs/roll |
| Emitting Color | White |
| Application | LED Channel Letter advertising letters,Name board, Wire bar,wall,building and stage decoration. |
1. Please cut off the power before installation.
2. This module works on DC12V/24V. Do NOT connect directly to AC 220V, otherwise the LEDs will burn out.
3. Match the correct power supply, calculate total power and reserve 20% extra load for driver.
4. Clean the mounting surface before sticking the modules to ensure strong adhesion of 3M tape.
5. For outdoor use, seal wire joints with waterproof glue to prevent water ingress.

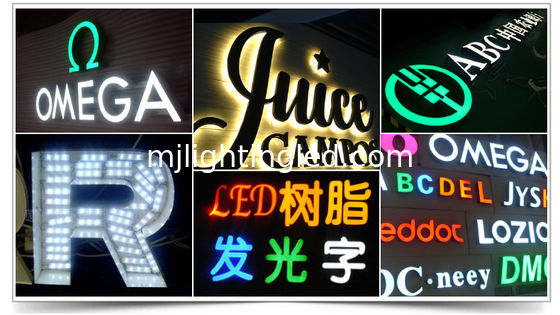

LED channel letters,Name board, Wire bar,wall,Lightbox,
Storage
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.
Building exhibition hall together with customers and agents.
Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.
Support customize to help dealers and agents satisfy their customers well.
Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.
Support professional technical service on pre-sale,in-sale and after-sale.
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
Q1: What voltage is the SMD LED module?
A: Standard DC12V or DC24V, please choose the correct power supply.
Q2: Can it be used outdoors?
A: Yes. IP65/IP67 waterproof. You need to seal wire connectors with waterproof glue for outdoor installation.
Q3: How to install the modules?
A: There is 3M tape on the back. Clean surface, peel tape and stick on flat panel, then wire in parallel.
Q4: Can I cut or separate the modules freely?
A: Each module is independent. You can cut between modules, don’t cut the single module itself.
