Super bright 5054 led sign modules 3smd leds 12V waterproof for outdoor signage

Good quality 30 mm LED Pixel for sales
Good quality 30 mm LED Pixel for sales
I'm Online Chat Now

Super bright 5054 led sign modules 3smd leds 12V waterproof for outdoor signage

China Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage supplier
Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage supplier Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage supplier Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage supplier Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage supplier Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage supplier

Large Image :  Super bright 5054 led sign modules 3smd leds 12V waterproof for outdoor signage

Product Details:

Place of Origin: China
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-3x5054-Woutdoor

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Packaging Details: 5000pcs/curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Contact Now
Detailed Product Description
Color: White LED: 5054SMD
Voltage: DC12V Power: 0.8W/pc
Size: 75*12*05 Mm Waterproof: IP68
Warranty: 3 Years Payment: T/T, Paypal, Western Union
Products: Led Sign Modules Application: Outdoor Signage

                              Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller




Super bright 5054 led sign modules 3smd leds 12V waterproof for outdoor signage

Specifications:

Product Name 5054 LED sign modules
Product Size 75*12*05 mm
Voltage DC12V
Power 0.8W/pc
Working Currency 20mA
Bean Angle 180°
IP Rate IP67
Working temperature -45℃~+70℃
Warranty 3 Years
Package 20pcs/roll
Emitting Color White
Application LED sign module is widely used for all kinds of advertising letters,Name board, lighting box sign letter,Wire bar,wall,building and stage decoration.

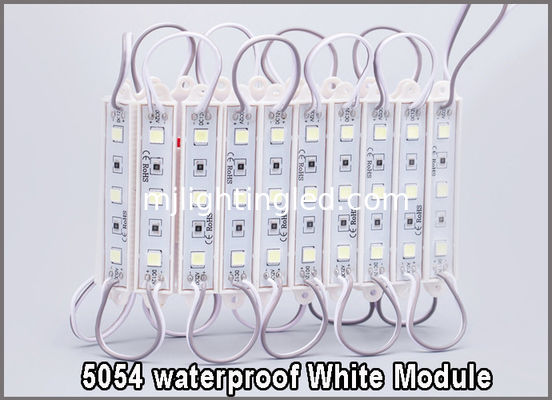

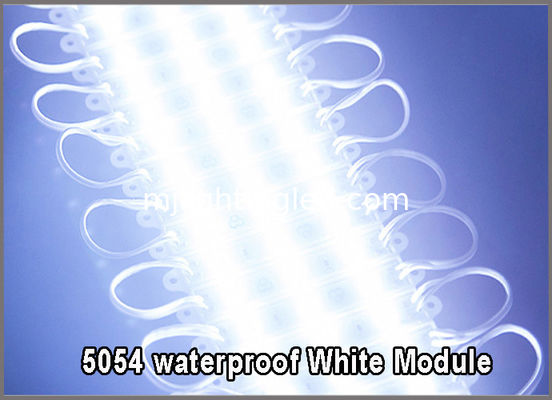

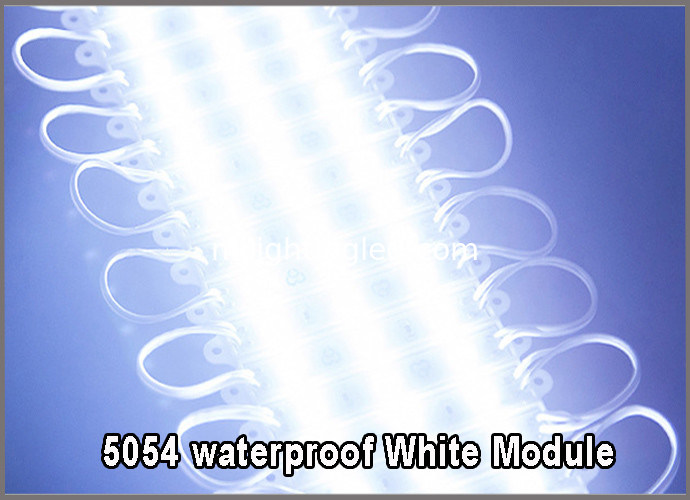

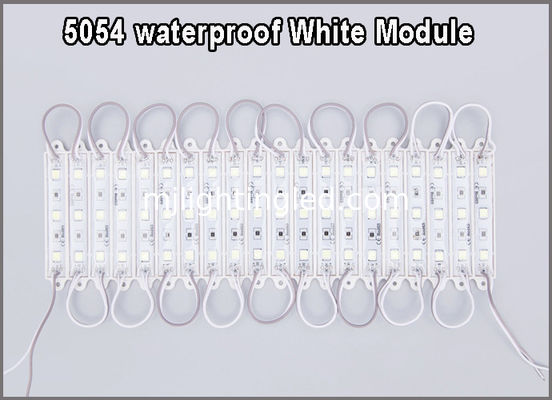

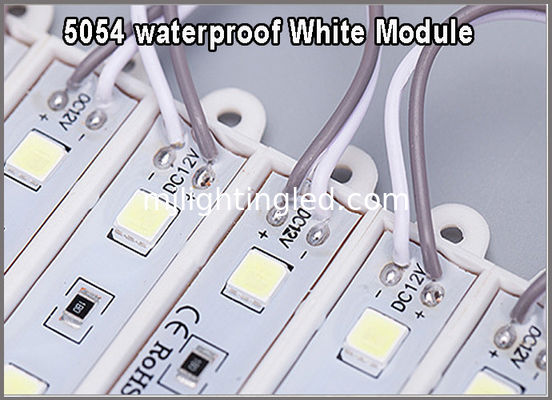

Pictures:
Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signageSuper bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signageSuper bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signageSuper bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signageSuper bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signageSuper bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage


Feature:

1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.

6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.


Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

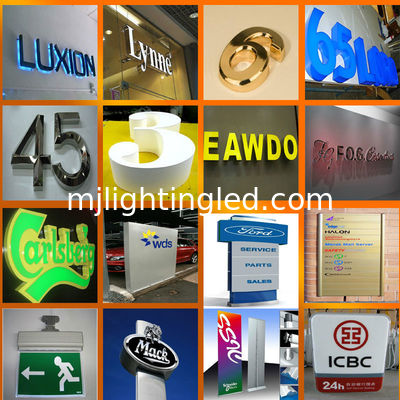

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
Super bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signageSuper bright  5054 led sign modules 3smd leds 12V waterproof for outdoor signage


Notice:
1.Pls confirm the dirver is DC12V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.
