Product Details:
|
| Product: | SMD P10 Led Display Screen | LED: | SMD LED Light |
|---|---|---|---|
| Voltage: | DC5V | Size: | 320*160mm |
| Color: | White | Pixel Resolution: | 32*16 Pixel |
| Power (max): | 20W | Power(ave): | 12w |
| Application: | Advertising Message |
Products Parameters:
| Products | P10-SMD White color panel light |
| Pixels Pitch | 10mm |
| Pixel Density | 10000 pixels/m2 |
| Brightness | 5500cd/m2 |
| Module Size | 320*160mm |
| Module pixels | 512 dots |
| Color | White |
| Board weight | 300g |
| The Best View Distance | >10m |
| The Best View Angle | Level:80°~-80°; Up:0°-75°; Down:0°-75° |
| Drive Modue | Constance Currency |
| Scaning | 1/4s |
| Port | HUB12 |
| Voltage | DV5V |
| Power(ave) | 12W |
| Power (max) | 20W |
| Lifespain | 100,000Hrs |
Pictures:
Feature:
✅ High refresh rate & high gray scale, stable display without flicker
✅ High brightness, clear image even under strong outdoor sunlight
✅ Easy assembly and maintenance, convenient for on-site screen repair
✅With Constant Current IC,dynamic scanning
Applications:
P10 semioutdoor is widely used for advertising in front of buidings like shops, supermarket,hotel....ect.
Q1: What is this LED diplay module used for?
A: It is outdoor full color LED display module, widely used for building exterior screen, square billboard, roadside upright advertising and other outdoor commercial display projects.
Q2: Is this LED module waterproof?
A: The lamp face is filled with double-component waterproof glue, and IC side is sprayed with three-proof silicone. It reaches IP65 for front side, suitable for outdoor use. But connectors need extra waterproof sealing.

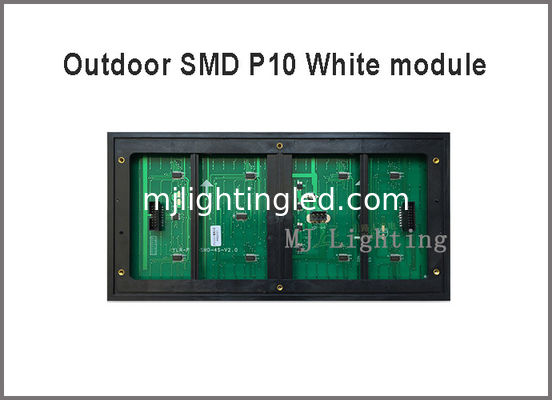

Q3: What does lamp-driver integrated PCB mean?
A: LED beads are on the front of PCB, and the driver IC chips are mounted on the back. This design makes the module thinner and easier for splicing.
