|Product:||5050 LED Modules||Voltage:||DC12C|
|Warranty:||3 Years||Usage:||Leds Backlights|
|Application:||Channel Letters||Item:||5 Leds Backlights|
5050 5 LED Pixel Modules IP67DC12V SMD Leds Backlights For Channel Letters Blue color
|Product Name||5050 5 led pixel modules|
|Product Size||75*12*05 mm|
|Application||LED module is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.|

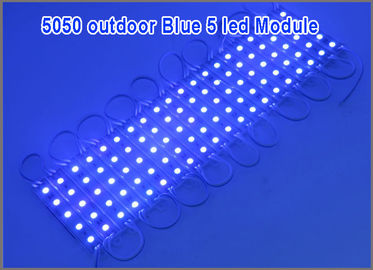

Pls check pictures of SMD 5050 5 LED module
1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.
2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.
6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

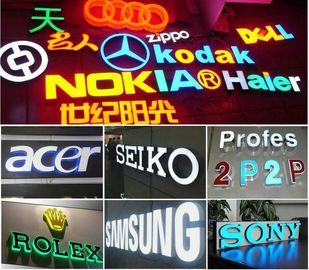

LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
If you have more questions, Pls contact with me:
Contact : Alice Wang
